Prologue MD-20

Front
Rear
Hub

Front
Rear
Hub

Prologue MD-20

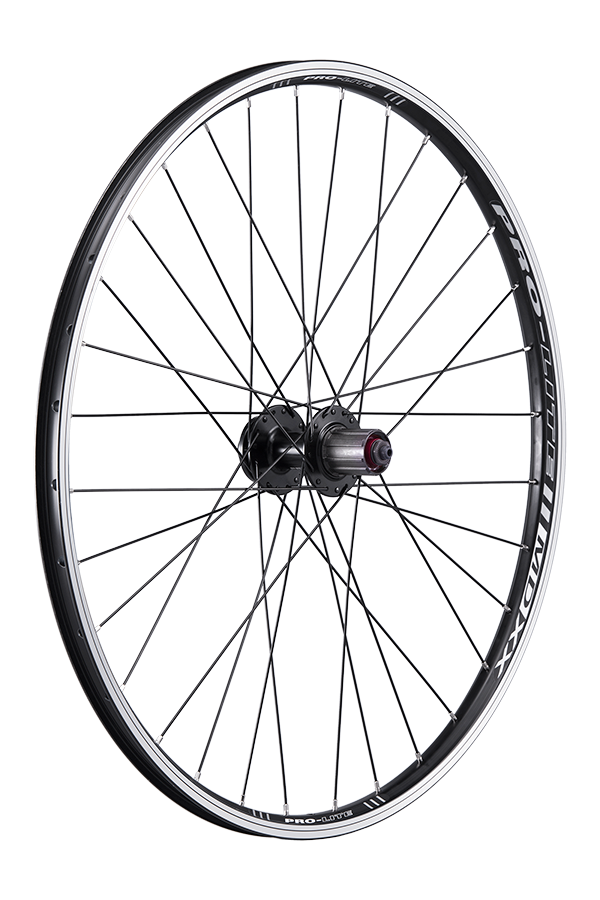

18mm Profile Alloy Clincher 26" XC Wheelset

With the recent restrictions, many people have pulled their old bikes out of mothballs and freshened the old steed up to get a bit of fresh air and exercise. However, with shifting standards, many older frames built for 26" wheels have no more options available. The MD-20 is perfect for this and features hand-built quality at a price point never before seen. With these wheels, you can experience the responsiveness, efficiency, confidence and power transfer of a hand-built wheel at cheaper than many machine-built wheels can be found. The MD-20 road wheel is differentiated from its sibling by using loose ball bearings and is only available as a 26" variant with XC-type rim dimensions.

Due to its position in the market, the Prologue MD series does not have interchangeable axles and is only available with standard QR compatibility.

Specifications

Rim (size)	26"	26"
	Front	Rear
ETRTO	19-559	19-559
Rim Type	Pinned Alloy 6061 T6	Pinned Alloy 6061 T6
Rim Finish	Anodized Black	Anodized Black
Braking Surface	CNC Braking Surface	CNC Braking Surface
Spokes (count)	32	32
Shape	2.0 Round	2.0 Round
Material	Stainless Steel, Black	Stainless Steel, Black
Nipple Material+Gauge	Brass 14G	Brass 14G
Hub
Bearings (#)	Cup & Cone	Cup & Cone
Freehub	n/a	Shimano 11S (+ 8/9/10)
Freehub Switchable	n/a	No
Freehub Material	n/a	Cromo
Axle Width (O.L.D.)	100mm	135mm
Axle Material	Cromo	Cromo
Disc Mount	ISO-6 BOLT	ISO-6 BOLT
Skewer Type	QR Skewer	QR Skewer
Weight (no skewer)	968g	1181g

* Weighed with rim tape, no skewers.

Compatible with the Shimano 11 speed standard as well as 9 and 10 speed cassettes.

Hub

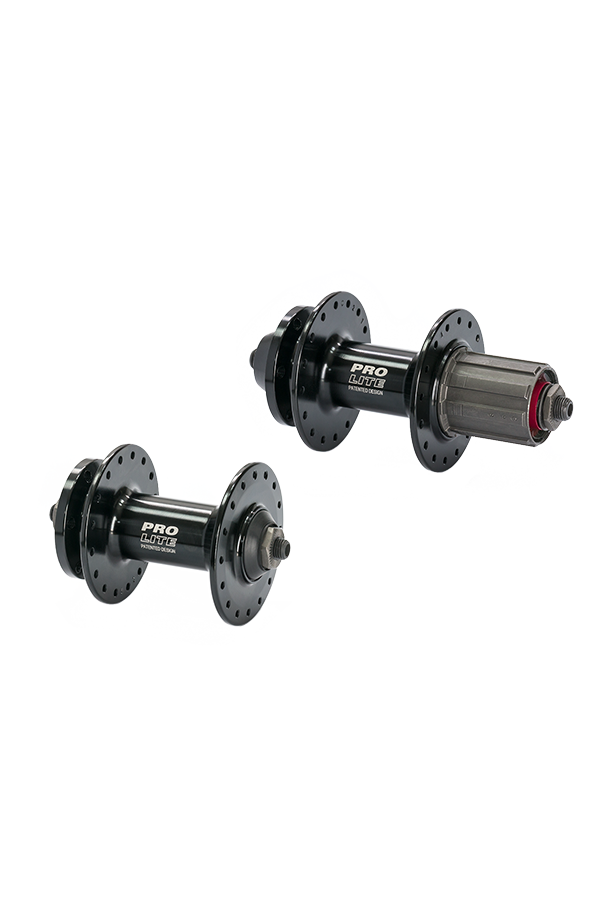

MD-20 Hubs

The MD-20 is primarily differentiated from sibling as a loose ball bearing hub. The hubs are also permanently sealed.

Cup and Cone Loose Ball Bearings

Spokes

J-Bend type spokes

The finest Swedish
Stainless Steel

Rim

18mm Profile Alloy All-Mountain Rim

The MD-20 uses 6061 heat treated alloy rims with no rim braking surface for maximum strength and minimum weight as well as maximum compatibility. The rims are built to conventional standard XC width profiles. Tubeless equipment is not included.
