Ardor

Ardor
7046 Alloy MTB Frame

Matt Black
Matt Black

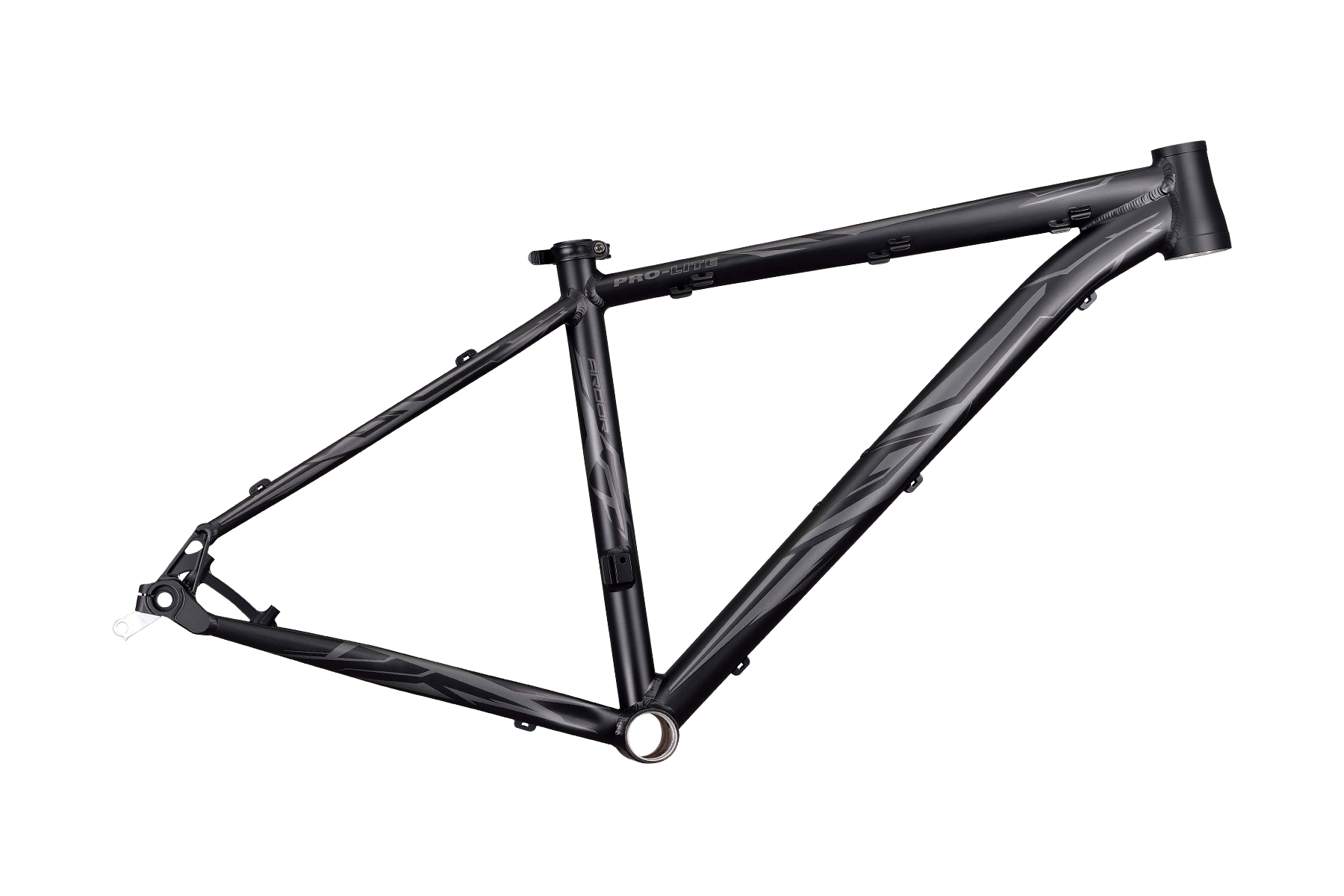

Side View

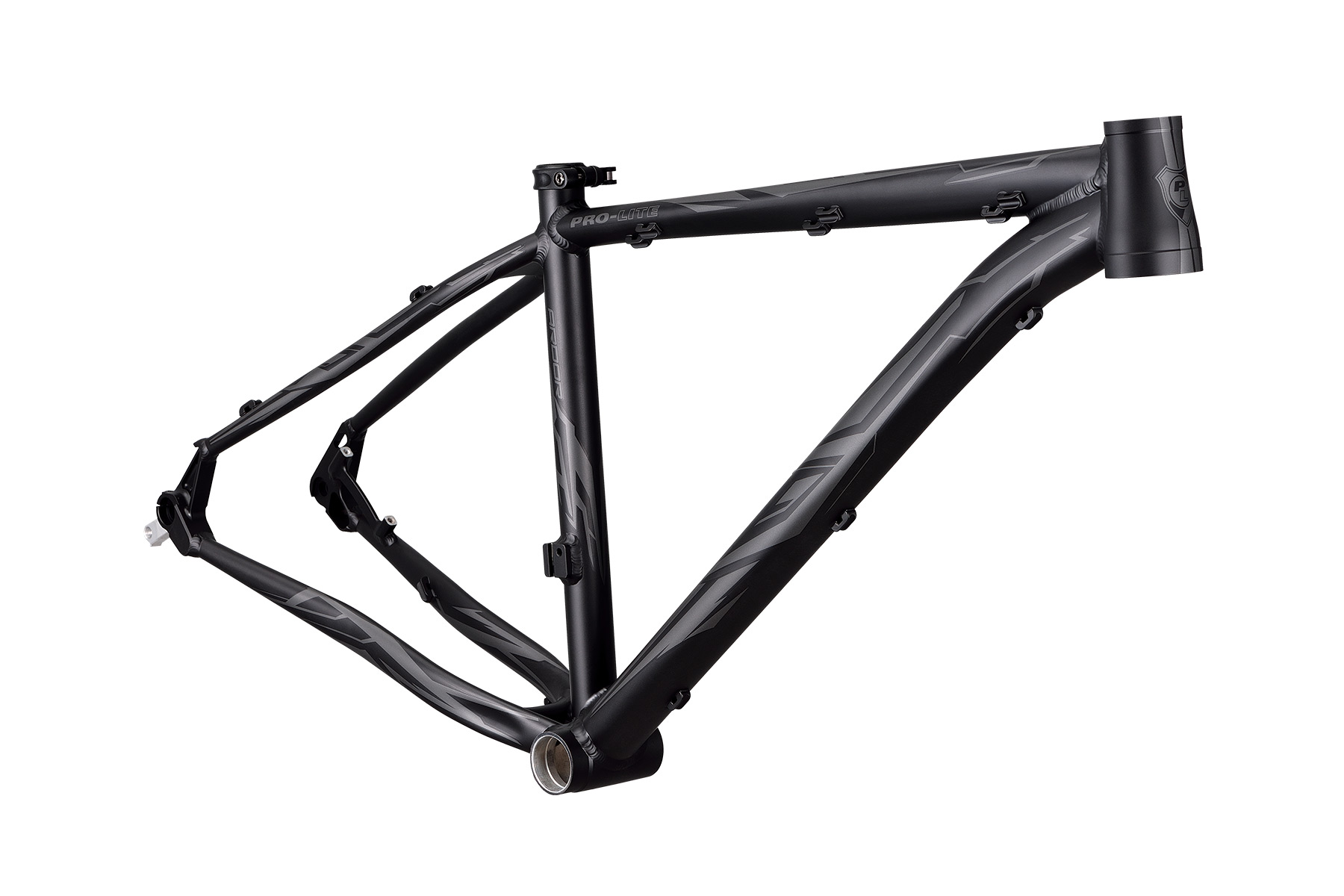

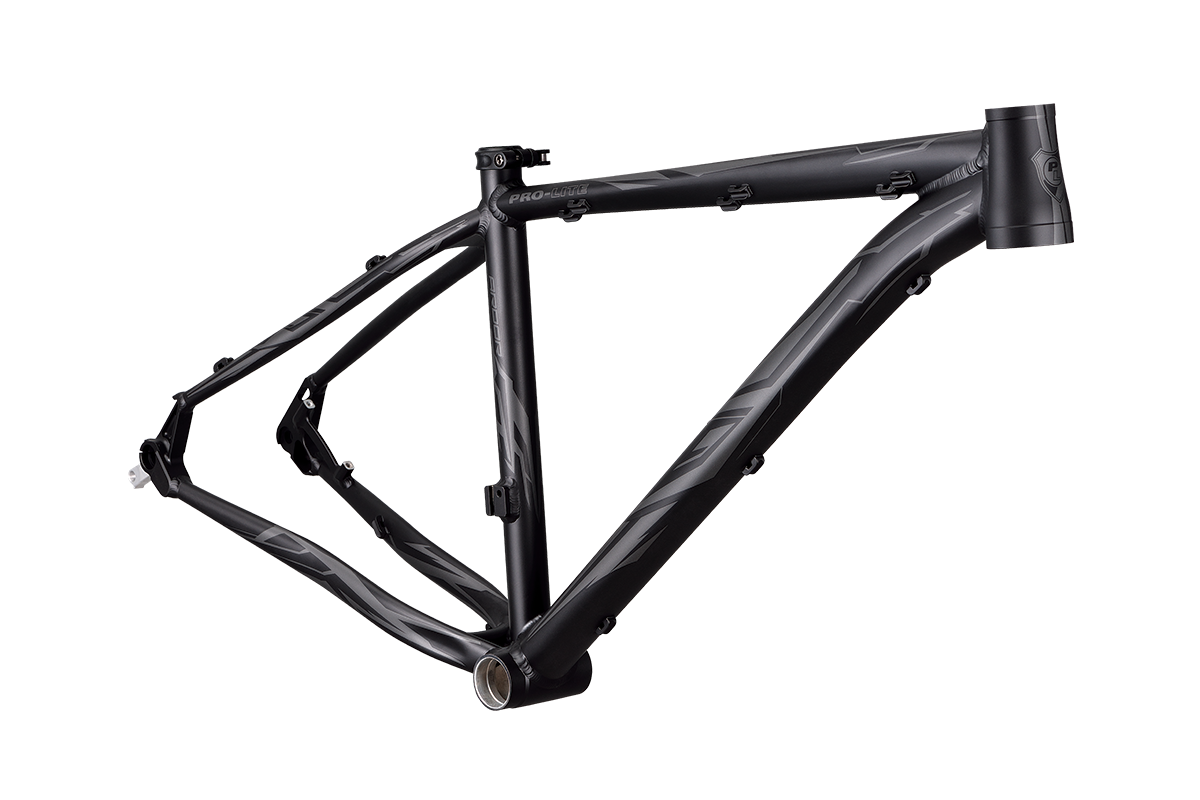

Angle View

To allow for the expansion of our OEM business, we have had to move our frame production away from the Pro-Lite lineup to OEM manufacturing. If you are in need of frames for a small, medium or large brand, please have a look at our OEM page or contact us directly with some information about your company through our contact page. Our MOQ is reasonable and of course, everything is 100% hand-built.

Features

7046 Alloy Race Ready X12 frame, nothing more to be said.

X12 Dropouts compatible with e-thru

Tig Welded

Specifications - 29"

Since 2013, Pro-Lite frames will be sold as kits. The Ardor kit includes:

Ardor frame
Azzurro headset and star nut for alloy steerers
Giano MTB QR seat clamp

Specifications
Head Tube Type	Tapered
Seat Post Diameter	31.6
Front Derailleur	Direct Mount
Cable Routing	External
BB Type	BB92
Dropout Type	Vertical
Frame Width	135 or 142

Specifications - 27.5" (650B)

Since 2013, Pro-Lite frames will be sold as kits. The Ardor kit includes:

Ardor frame
Azzurro headset and star nut for alloy steerers
Giano MTB QR seat clamp

Specifications
Head Tube Type	Tapered
Seat Post Diameter	31.6
Front Derailleur	Direct Mount
Cable Routing	External
BB Type	BB92
Dropout Type	Vertical
Frame Width	135 Or 142

Geometry

29"
27.5" (650B)

Size	15.5"	17.5"	19"
	Small	Medium	Large
Seat Tube (C-T)	390	440	480
Top Tube (effective)	580	600	620
Chain Stay (actual)	438	438	438
Seat Tube Angle	73.81	73.81	73.81
Bottom Bracket Drop	60	60	60
Head Tube Length	105	105	115
Head Tube Angle	69.5	69.5	69.5
Reach	411.14	431.04	448.01
Stack	580.02	580.02	589.39
Fork Length	470	470	470
Fork Rake	47	47	47
Wheelbase	1089.86	1109.86	1130.65
Weight_X12		1945g
Weight_QR		1908g

Size	17"	19"	21"
	Small	Medium	Large
Seat Tube (C-T)	430	480	530
Top Tube (effective)	585	605	630
Chain Stay (actual)	430	430	430
Seat Tube Angle	73	73	73
Bottom Bracket Drop	53	53	53
Head Tube Length	100	110	125
Head Tube Angle	71	71	71
Reach	403.23	420.82	438.8
Stack	594.4	603.76	617.9
Fork Length	490	490	490
Fork Rake	44	44	44
Wheelbase	1062.78	1083.14	1108.69
Weight (X12)		1865g
Weight (QR)		1835g
