Cuneo 650

Cuneo 650
7046 Alloy 650C Road Frame

Gloss White
Gloss White

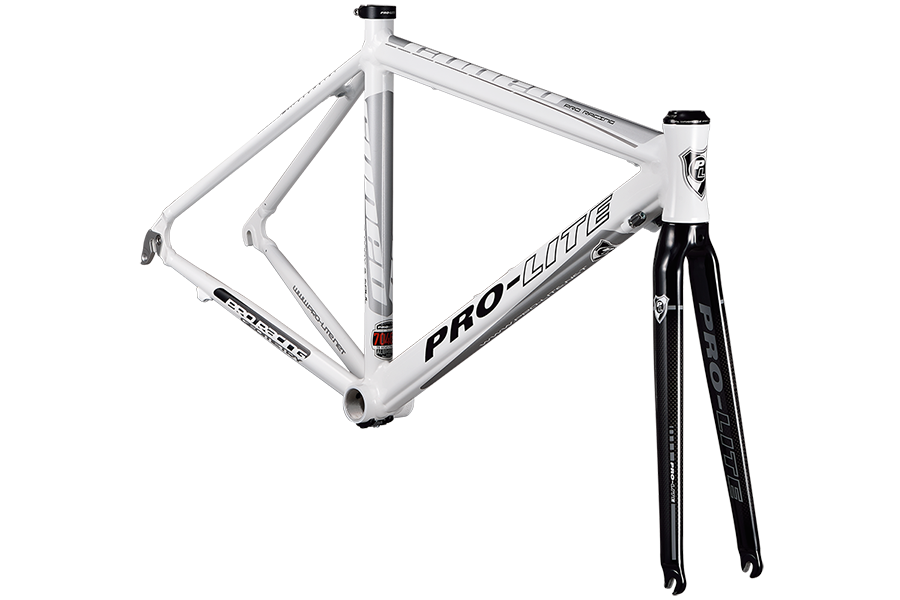

Side View
Angle View

To allow for the expansion of our OEM business, we have had to move our frame production away from the Pro-Lite lineup to OEM manufacturing. If you are in need of frames for a small, medium or large brand, please have a look at our OEM page or contact us directly with some information about your company through our contact page. Our MOQ is reasonable and of course, everything is 100% hand-built.

Features

The truth is, no matter how tall or short you might be, there is no compromise for having a bicycle that fits. Responding to the needs of smaller riders everywhere, Pro-Lite has taken the lessons learned from our youth series and made the Cuneo 650.

Using the same PBS 7046 alloy as the standard Cuneo, the unbelievable lightness and rigid power transfer of the Cuneo 650 blends professional quality with racing vision.

Full race geometry delivers true performance.

The Cuneo 650 is a perfect match for our new Bracciano 650 wheelset.

7046 Alloy

Heat Treated

Smoothed welds

Specifications

Since 2013, Pro-Lite frames will be sold as kits. The Cuneo 650 kit includes:

Cuneo 650 frame
Brescia 650 carbon fork
Ancona headset and Wedge for carbon steerers
Garda seat clamp

Specifications
Head Tube Type	Straight
Seat Post Diameter	27.2
Front Derailleur	Clamp On
Cable Routing	External
BB Type	BSA 68
Dropout Type	Vertical
Frame Width	130

Geometry

Size	650C
Seat Tube (C-T)	440
Top Tube (effective)	509
Chain Stay (actual)	370
Seat Tube Angle	73
Bottom Bracket Drop	48
Head Tube Length	96
Head Tube Angle	71.8
Reach	365.98
Stack	465.02
Fork Length	358.8
Fork Rake	43
Wheelbase	915.25
Weight	1010g
