Cassini

Cassini
7046 Alloy Road Frame

Matt Black
Matt Black

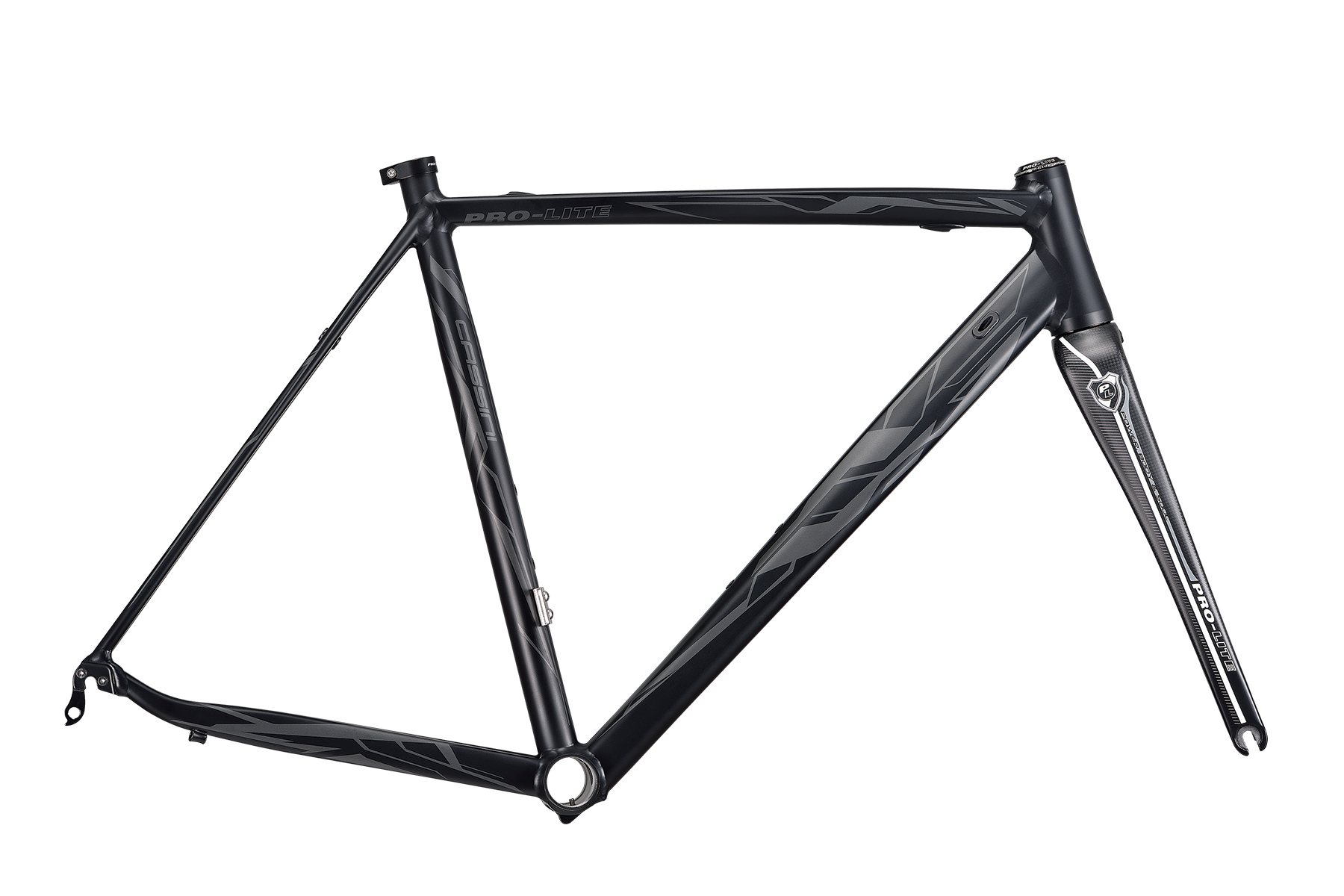

Side View

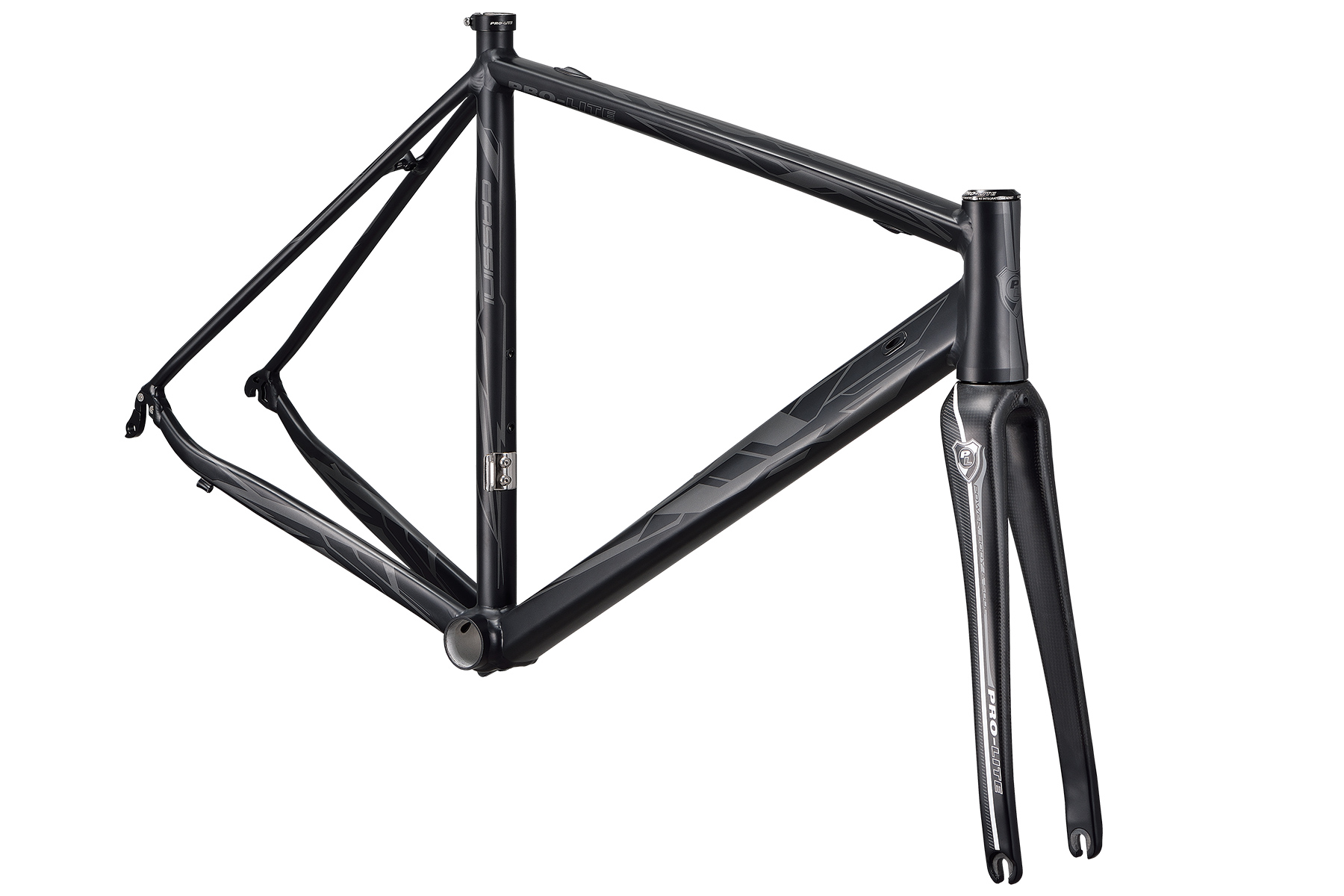

Angle View

To allow for the expansion of our OEM business, we have had to move our frame production away from the Pro-Lite lineup to OEM manufacturing. If you are in need of frames for a small, medium or large brand, please have a look at our OEM page or contact us directly with some information about your company through our contact page. Our MOQ is reasonable and of course, everything is 100% hand-built.

Features

The Cassini is a thing of beauty, ready to hit the local crit or century ride. You want to ride it? The Cassini can handle it. With our 7046 custom alloy tubing, you won’t be let down.

Internal cable routing

Inline cable adjustors

Specifications

Since 2013, Pro-Lite frames will be sold as kits. The Cassini kit includes:

Cassini frame
Liguria Ponente fork
Ancona headset and Wedge for carbon steerers
Garda seat clamp

Specifications
Head Tube Type	Tapered
Seat Post Diameter	27.2
Front Derailleur	Braze-On Style
Cable Routing	Internal
BB Type	BB86
Dropout Type	Vertical
Frame Width	130

Geometry

Size	48	50	52	54	56	58	60.5
Seat Tube (C-T)	485	505	525	545	565	585	605
Top Tube (effective)	500	520	535	550	560	575	590
Chain Stay (actual)	400	400	400	400	405	407	407
Seat Tube Angle	74	74	74	74	73.5	73.5	73.5
Bottom Bracket Drop	67	67	67	67	67	67	67
Head Tube Length	90	102	120	140	160	178	200
Head Tube Angle	72	72.5	73	73	73	73	73
Reach	357.67	372.64	383.65	393.96	396.67	401.57	411.04
Stack	490.29	502.62	521.82	541.79	557.17	577.99	598.4
Fork Length	371	371	371	371	371	371	371
Fork Rake	45	45	45	45	45	45	45
Wheelbase	937.22	953.73	965.14	980.5	990.98	1008.17	1023.37
Weight				1440g
