Bracciano A27W

Front
Rear
Hub

A27W (F)
A27W (R)
A27W (Hub)

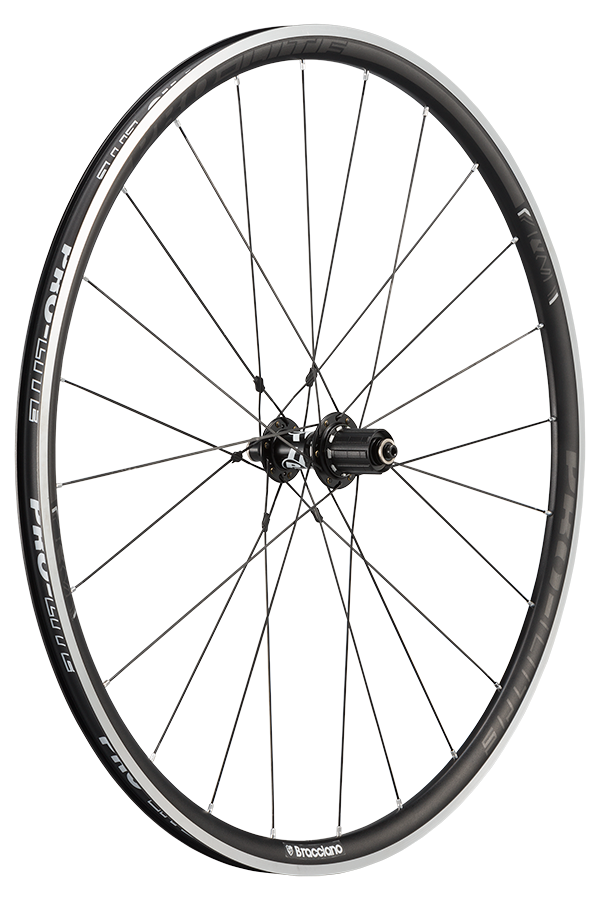

Bracciano A27W
27mm Full Alloy Wide Rim Wheelset

The Bracciano has long been known as a fantastic all-round wheelset, with competitive weight, hand-built quality and great components.

The latest model in the Bracciano lineup brings a wide rim, which is tubeless ready, but maintains a deeper gusset to allow easier tire installation. In addition, the hub has been changed to the lighter Bracciano 4-bearing hub, rolling on four EZO bearings for smooth operation and an alloy axle.

This is the newest version of the Bracciano A27 with wide rims. If you are looking for information about the previous version with conventional width rims, please click here.

Specifications

Rim (size)	700C	700C
	Front	Rear
ETRTO	19-622	19-622
Rim Type	Sleeved 6061 Clincher	Sleeved 6061 Clincher
Rim Finish	Shot Peened Black with dark decals	Shot Peened Black with dark decals
Spokes	20	24
Shape	2.2mm Double Butted Aero	2.2mm Double Butted Aero
Material	Sandvik Stainless Steel	Sandvik Stainless Steel
Nipple Material+Gauge	Alloy 14G	Alloy 14G
Spoke Brace	n/a	2.2mm
Lacing	Radial	2-Cross
Hub
Bearings (#)	2 (Japanese EZO)	5 (Japanese EZO)
Freehub Type	n/a	Shimano or Campy
Freehub Switchable	n/a	Yes
Freehub Material	n/a	Alloy
Axle Width (O.L.D.)	100mm	130mm
Axle Material	Alloy	Cr-Mo
Skewer Type	QR	QR
Weight	728g*	890g*

* Weighed with rim tape, no skewers.

Compatible with the new Shimano 11 speed standard as well as 9 and 10 speed cassettes.

Hub

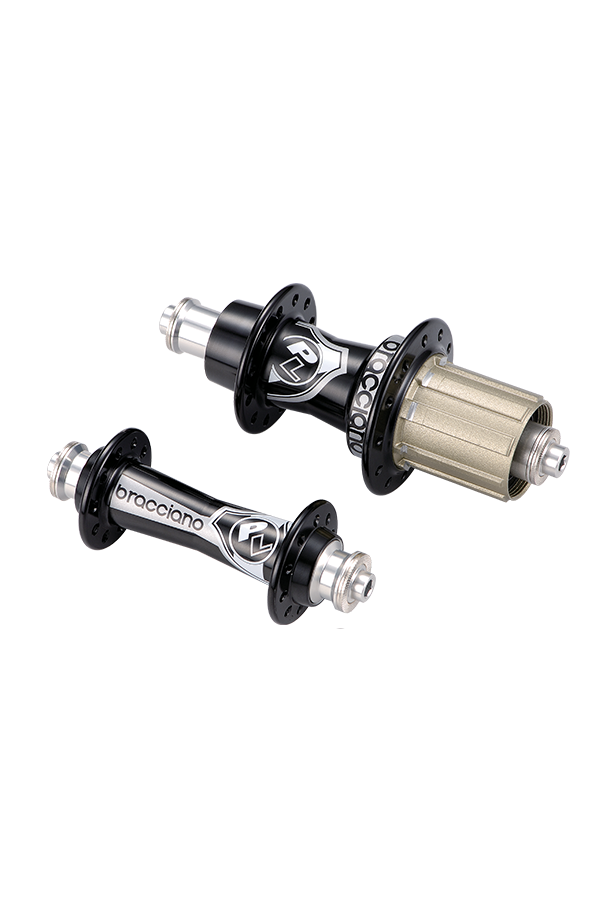

Bracciano Hubs

The Bracciano A27W uses the 4-bearing for the first time. Bracciano A27W only use dark graphics on the rim. Used on one of our most acclaimed wheels, Bracciano Hubs are renowned for super low rolling resistance and impressive power transfer. The Bracciano A27W uses the 4-bearing for the first time. Bracciano A27W only use dark graphics on the rim.

2 Sealed Bearings
(Front)

4 Sealed Bearings
(Rear)

Japanese EZO bearings

Swappable
Shimano/SRAM or Campy

Spokes

Spoke Braces included

J-Bend type spokes

Aero Blade spokes

Butted for strength

The finest Swedish
Stainless Steel

See link below to download the Spoke Tension Chart.

Rim

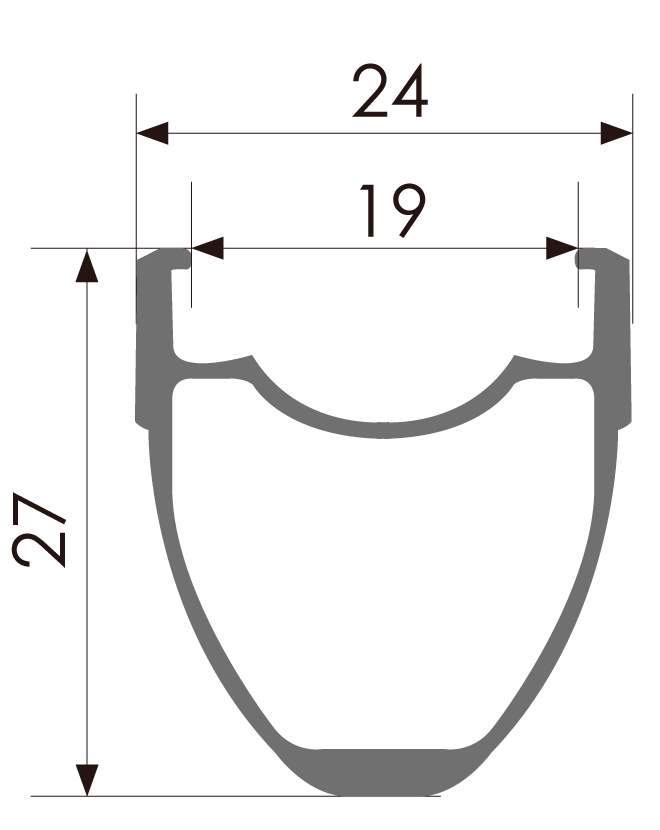

27mm Profile Alloy Rim

The new Bracciano A27W has a 24mm wide, sleeved, low profile alloy rim of the Bracciano A27W for the perfect mix of low rotational mass and strength. The updated model now has dark stealth type graphics. The rim is "tubeless ready", with higher rim bed, allowing easier first inflation with tubeless setups, but a deeper gusset to make it easier to get the bead over the rim.
